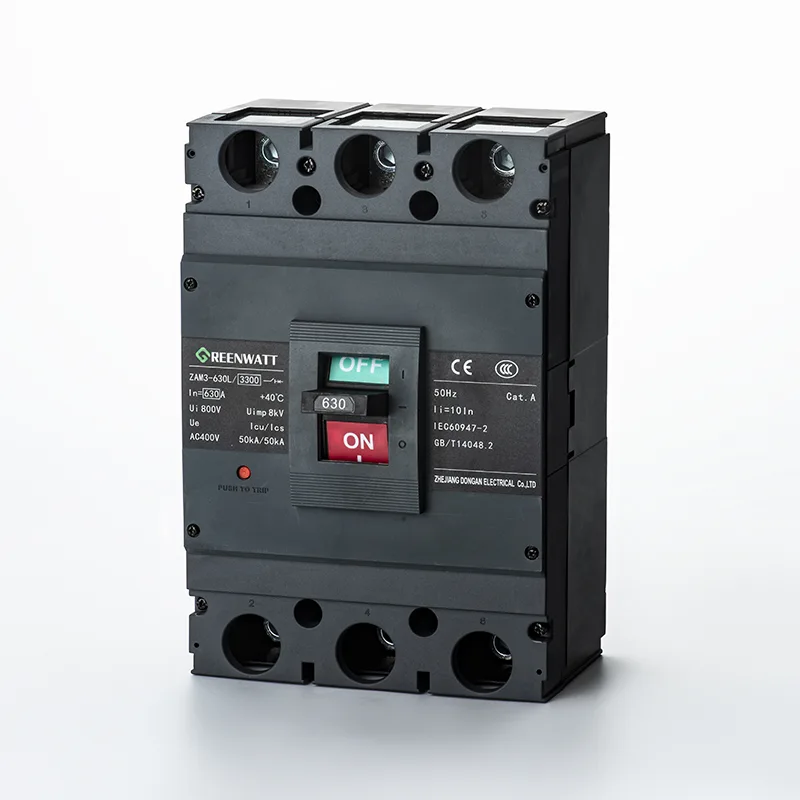

AC400V 630A Molded Case Circuit Breaker

The AC400V 630A Molded Case Circuit Breaker is not an ordinary circuit switch, but a core low-voltage protection device integrating precision engineering technology. It is widely used in industrial power distribution, commercial buildings, motor control centers, and other scenarios, providing accurate and reliable circuit protection for various electrical systems. GreenWatt, a professional circuit breaker manufacturer in China, has been deeply involved in the electrical field for nearly 30 years, integrating its rich R&D experience and innovative technologies into every detail of this product to ensure stable protection even under complex operating conditions.

The AC400V 630A Molded Case Circuit Breaker employs a unique tripping unit design, coupled with a high-efficiency arc-extinguishing chamber, to quickly extinguish the arc and prevent the fault from escalating. The application of a dual-break contact system not only improves the product's operational performance but also enhances its long-term reliability, effectively extending its service life.

Core Product Functions

1.Overload Protection: Utilizing a thermomagnetic tripping mechanism, when the circuit current exceeds the rated value, a delayed tripping action is achieved, preventing damage to the circuit due to prolonged overload and overheating, and reducing fire risk.

2.Short Circuit Protection: Instantaneous response to short circuit faults, cutting off the circuit in milliseconds, quickly extinguishing the arc, preventing irreversible damage to equipment and lines caused by short circuit current, and ensuring the safety of personnel and equipment.

3.Status Visualization: Equipped with a contact position visual indicator, clearly displaying the product's open/closed status, facilitating safe troubleshooting by staff and improving maintenance efficiency.

4.Flexible Adaptability: Supports both thermomagnetic and hydraulic magnetic tripping units, allowing flexible selection based on different load characteristics, adapting to various power distribution scenarios.

Product Application Scenarios

The AC400V 630A Molded Case Circuit Breaker, with its stable performance and wide adaptability, can be applied in multiple fields, primarily including:

Industrial Plant Power Distribution Systems: As a main circuit or branch circuit protection device, ensuring stable operation of production equipment and preventing circuit faults from affecting production progress.

Commercial Buildings: Used in distribution panels and cabinets in buildings such as shopping malls, office buildings, and hotels to protect the safe operation of electrical equipment such as lighting, air conditioning, and elevators.

Motor Control Centers: Adapted to motor circuits, effectively mitigating the high current surge during motor startup while accurately detecting minor faults such as arcing and short circuits, ensuring motor safety.

New Energy Sector: Used in photovoltaic, energy storage, and other new energy power distribution systems, providing reliable short-circuit and overload protection, adapted to the operating characteristics of new energy equipment.

Core Technical Parameters

Technical Advantages

1. Precise Protection Technology

The AC400V 630A Molded Case Circuit Breaker employs advanced thermomagnetic tripping technology, accurately distinguishing between overload and short-circuit faults to prevent false tripping. For special scenarios such as motor circuits, by appropriately setting the tripping parameters, it can avoid the 7-8 times rated current surge during motor startup while accurately detecting arc short-circuit faults at 5-8 times the rated current, balancing protection sensitivity and selectivity to reduce the risk of fault escalation.

2. High-Efficiency Arc Extinguishing Design

The product incorporates an ion arc extinguishing chamber and a grid-type arc extinguishing structure. The grid rapidly divides and cools the arc, while the ion arc extinguishing chamber accelerates arc extinguishing, ensuring that fault current is interrupted within milliseconds. This significantly reduces arc burn-in to the contacts, improving the product's breaking capacity and service life. Simultaneously, the optimized arc distance design further enhances the product's safety performance.

3. Stable Structural Design

The housing is made of high-strength thermosetting composite material, possessing excellent insulation performance and impact resistance, effectively resisting the effects of harsh operating conditions. The dual-break contact system uses high-quality copper alloy contacts, with low contact resistance and excellent conductivity, while also improving the product's breaking speed and reliability, ensuring long-term stable operation.

4. Strong System Coordination

Addressing the coordination challenges of upstream and downstream circuit breakers in power distribution systems, we offer selective coordination research services. By analyzing the parameters of the entire power distribution system, we optimize the tripping parameter settings of the AC400V 630A Molded Case Circuit Breaker, achieving fully selective coordination between upstream and downstream circuit breakers, avoiding cascading tripping, and improving the stability of the entire power distribution system.
