DC1500V 500A Molded Case Circuit Breaker

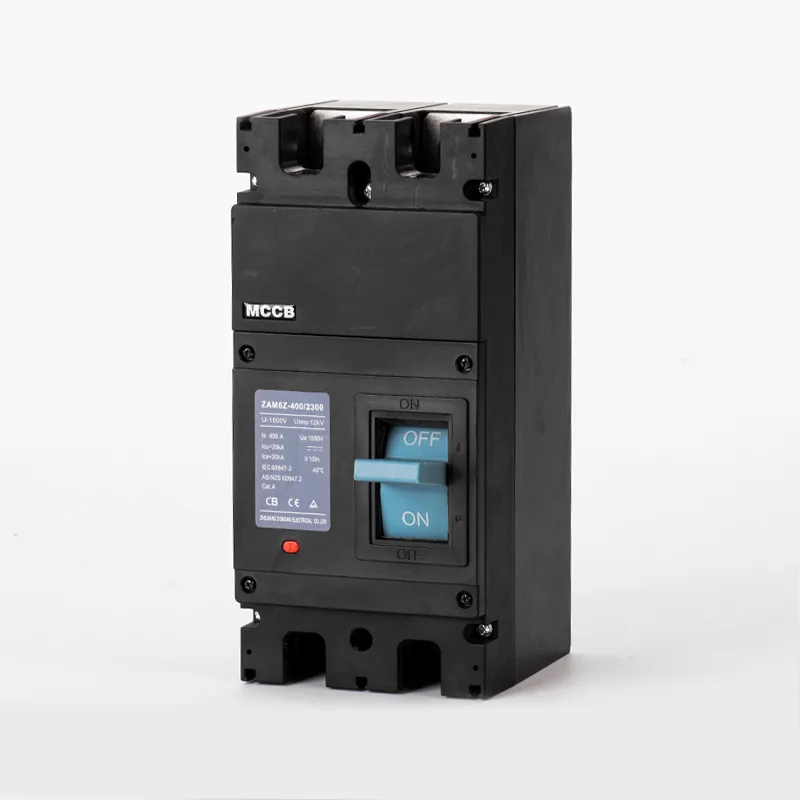

GREENWATT, a professional manufacturer of DC1500V MCCBs, provides reliable DC1500V 500A molded case circuit breakers for commercial DC systems such as industrial and commercial energy storage, ground-mounted photovoltaic power stations, or DC lighting grids. This DC1500V 500A molded case circuit breaker features a compact 2P (2 poles) design, effectively saving installation space within electrical cabinets, and is equipped with user-friendly operating switches for easy daily maintenance.

Technologies and Technical Features

In high-voltage direct current (HVDC) applications, extinguishing an electric arc is far more difficult than with alternating current. Our DC1500V 500A molded case circuit breaker is deeply optimized to address this challenge.

1. Arc Extinguishing Technology Adapted to High-Voltage Environments

This DC1500V 500A molded case circuit breaker integrates a narrow-slot arc extinguishing chamber and magnetic blowout technology. When the current reaches 500A and arcs under high voltage, the circuit breaker can rapidly elongate and cool the arc, ensuring safe circuit disconnection in a very short time, protecting downstream inverters or battery packs.

2. Compact 2P Structure Design

To meet the space density requirements of modern electrical cabinets, we have optimized the internal inter-pole insulation design. Even at high voltage levels of DC1500V, this product maintains a compact form factor, providing users with more layout possibilities within limited commercial energy storage container space.

3. Durability and Ease of Operation

Contact System: Utilizes a high-conductivity alloy material to ensure low contact resistance during long-term operation at 500A.

Operating Handle: Ergonomically designed with clear indicators (ON/OFF/TRIP) and supports a padlock function for safe maintenance.

Housing Material: Constructed with high-grade flame-retardant reinforced materials, possessing excellent resistance to tracking and mechanical strength.

Why Choose GREENWATT?

Zhejiang Dongan Electrical Co., Ltd. is a modern enterprise integrating electrical design, manufacturing, sales, and service.

1. 30 Years of Industry Experience and Strength

Since its establishment, we have always adhered to the principle of "Science First, Quality First." After nearly 30 years of hard work, we have accumulated rich experience in the research and development of DC1500V 500A molded case circuit breaker and related products.

2. Strong Manufacturing and Testing Capabilities

We have our own production base, equipped with modern automated assembly lines and precision testing equipment:

● Short-circuit current tester: Simulates extreme fault conditions to ensure the reliability of every DC1500V MCCB.

● Overload tester: Rigorously calibrates the tripping curve.

● RoHS 2.0 laboratory: Ensures products comply with international environmental standards.

3. Authoritative Certifications and Compliance

Our factory has passed ISO9001, ISO14001, and ISO45001 system certifications. Our product range covers CE, CB, TUV, CCC, and other certifications, ensuring legal access and safe application in the global market.

Our Comprehensive Service

In addition to the existing standard DC1500V 500A molded case circuit breaker, we also offer:

Customized Development: Production of various matching components (including thermosetting molded parts, metal stamping parts, etc.) based on your drawings or samples.

Prototype First: We will provide samples for customer confirmation before mass production.

After-sales Guarantee: Users enjoy a 3-year warranty from the date of purchase. In case of non-human-caused quality problems, GREENWATT promises free repair or replacement. Our technical team can provide remote installation guidance and troubleshooting advice via email or telephone.

Frequently Asked Questions (FAQ)

Q1: Does this DC1500V circuit breaker support bidirectional wiring?

A1: Yes, this series of circuit breakers is designed with the bidirectional current flow characteristics of photovoltaic systems in mind, effectively handling protection needs under both charging and discharging conditions.

Q2: How to ensure controlled temperature rise at the 500A high-current connection?

A2: We recommend using copper busbars or cables of the recommended specifications and ensuring that the torque of the connecting bolts meets the standard value. Our DC1500V 500A molded case circuit breaker terminals have undergone special anti-corrosion and heat suppression treatment.

Q3: Can you provide OEM/ODM services?

A3: As a leading DC1500V MCCB manufacturer, we have a complete mold development and stamping workshop, and can provide customized OEM/ODM services according to customer needs.
